MOUNT UMUNHUM

Santa Clara County, CA

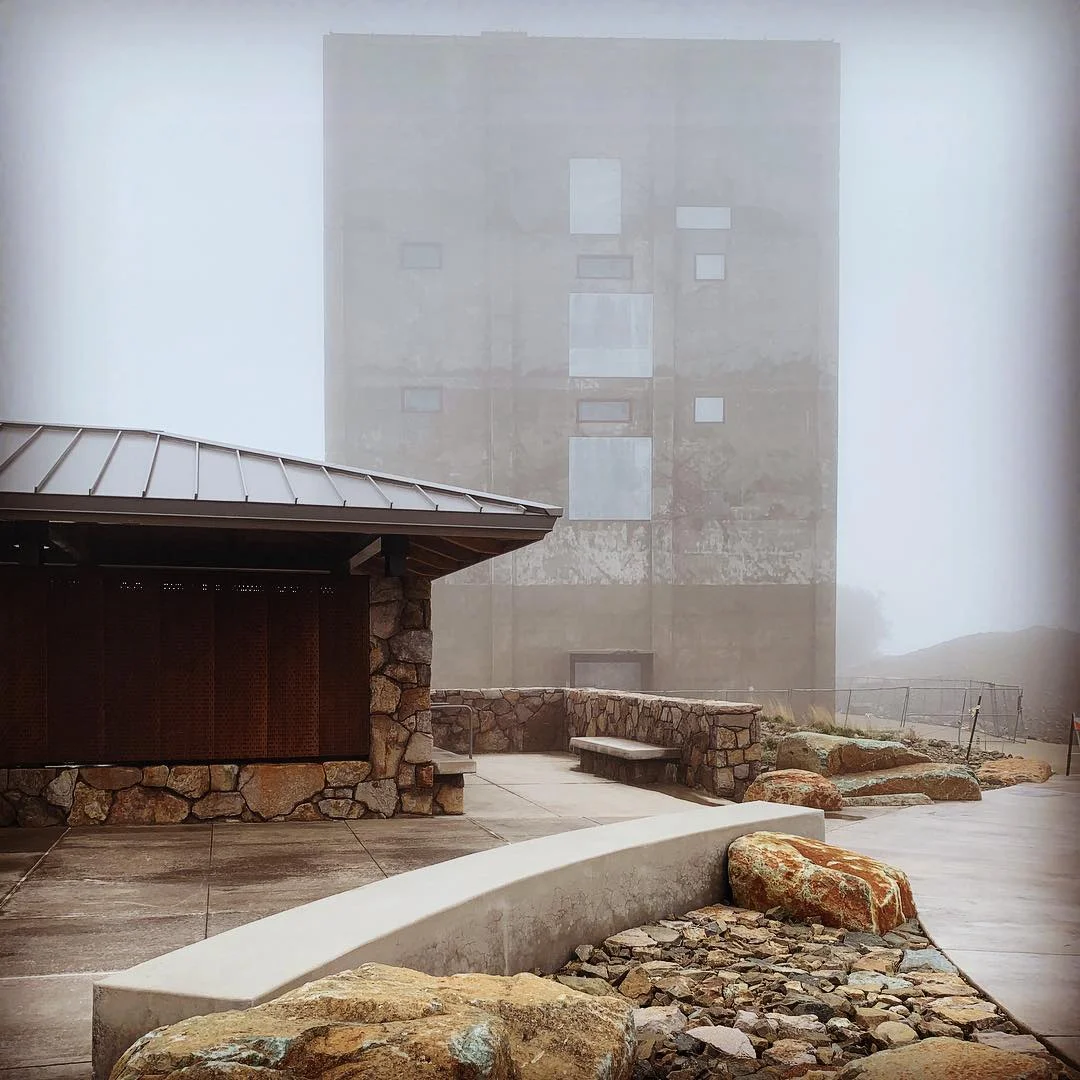

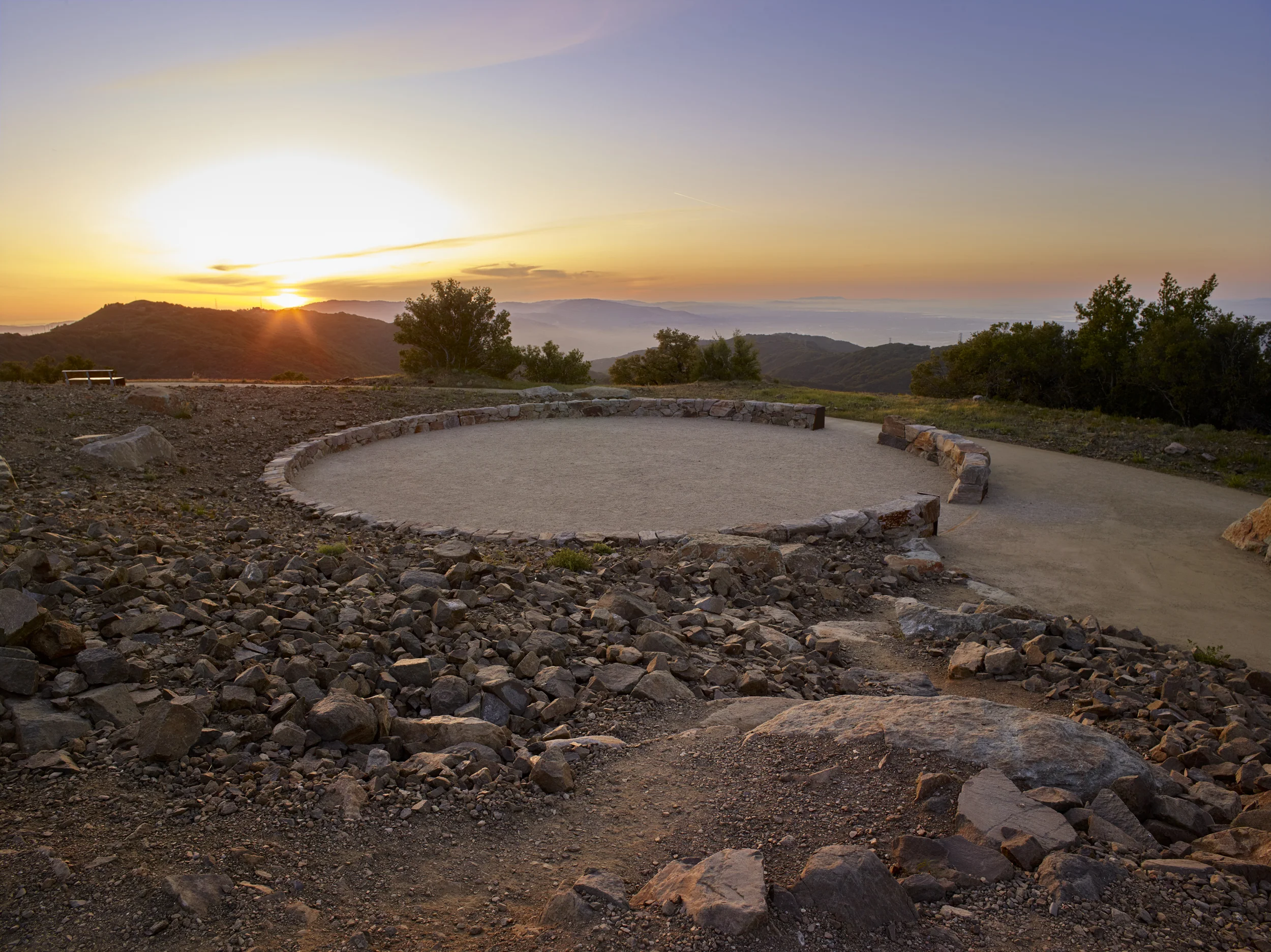

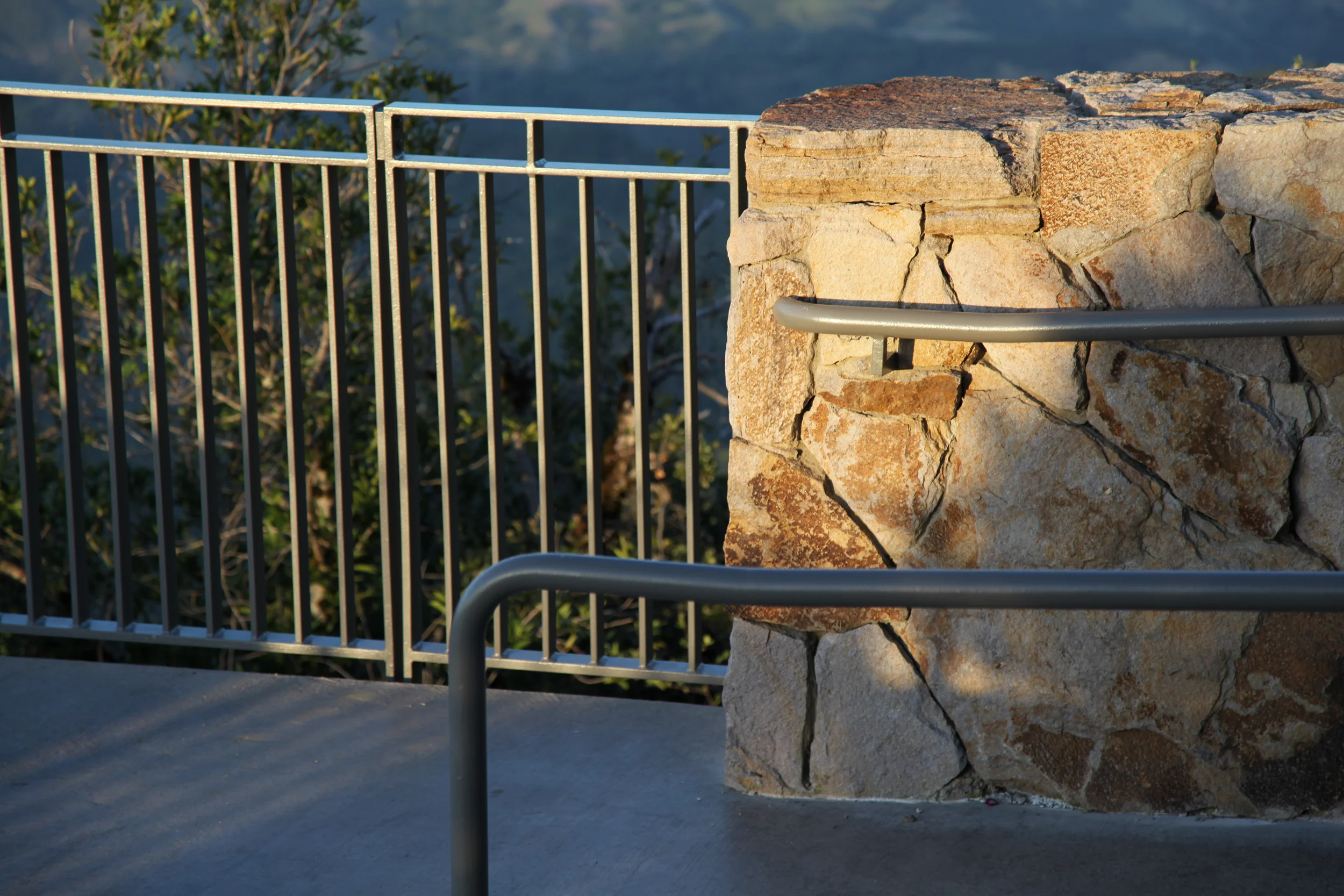

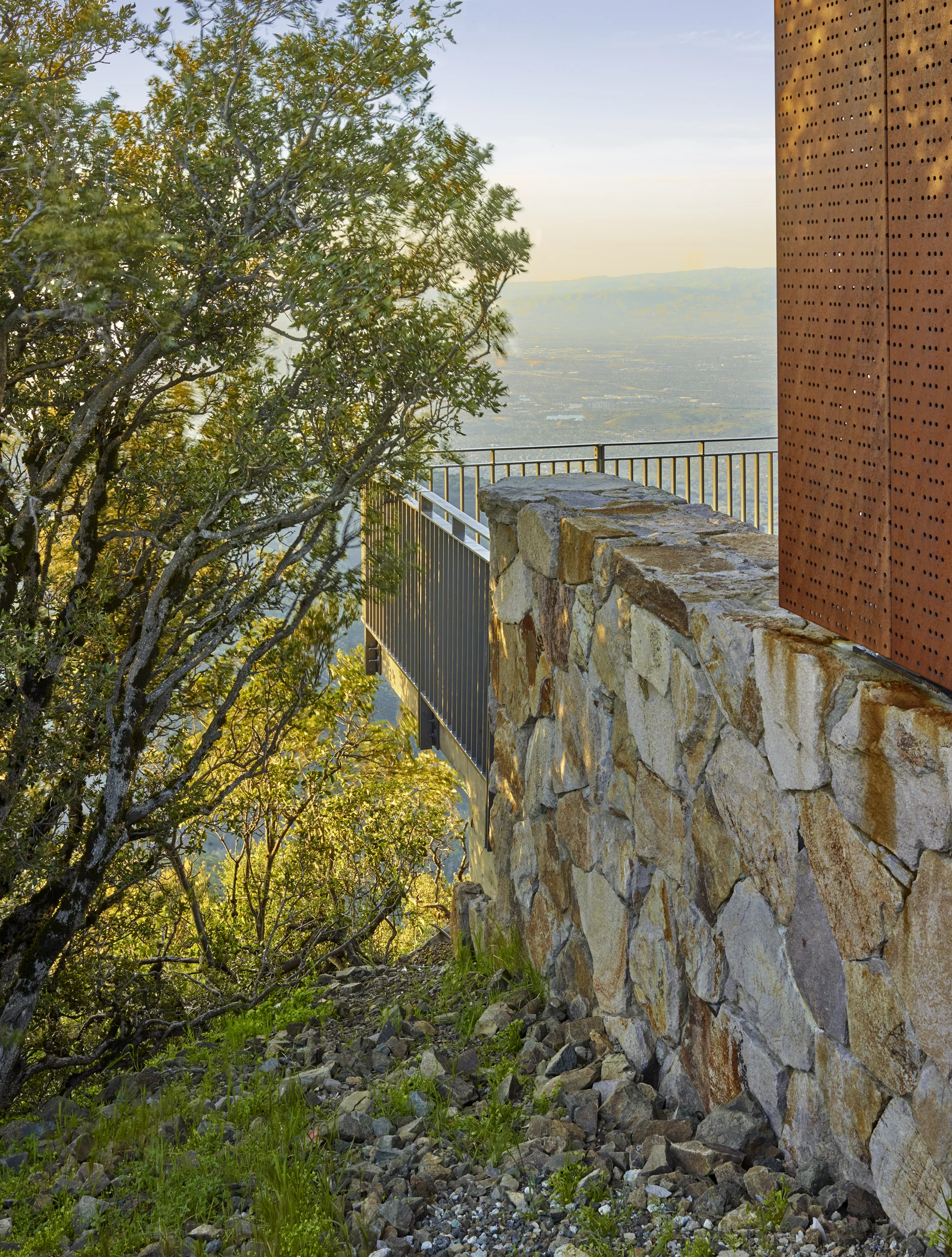

The Mount Umunhum summit restoration project restored public access to Mount Umunhum and the former Almaden Air Force Station. The goal was to create structures that wouldn’t dominate the natural beauty of the site, yet were durable enough to withstand peak winds of 140 mph. The shelters were also designed to reduce fire and life safety risks, as necessary for the Wildlife Urban Interface zone. The performance-based design is characterized by primarily non-combustible materials, a cantilevered concrete platform, high-strength concrete, steel moment frames, and fire-retardant treated heavy timber truss construction. Shelter placement also ensured a minimum of 50 FT of defensible space on all sides. As architects and engineers on the project, Ware Associates investigated the creation of a “caretaker” building aesthetic. The result was a new park-structure vocabulary, inspired by WPA styling and the Civilian Corps projects from the New Deal era.

Client: Midpeninsula Regional Open Space District (MROSD)
Landscape Architect: Restoration Design Group (RDG)
Architect & Engineer: Ware Associates
Contractor: D-Line



Doyle Hollis Park

Emeryville, CA
Built on a 1.25-acre block in a mixed-use area, Ware Associates provided the architectural, civil and structural engineering services for this urban park (budget $2.5 million).  The park is a beautiful space for play, relaxation, and exercise within this high-density neighborhood. Through a series of workshops, input was obtained on the community’s interests, priorities and concerns. A model of sustainable building, the public restroom facilities designed by Ware Associates for the City of Emeryville’s Doyle Hollis Park are open, naturally-ventilated spaces that incorporate a variety of sustainable elements, including a green roof which reduces storm runoff volume while protecting the roofing system. This typically doubles the lifespan of the underlying waterproofing membrane. Durable paver skylights allow light and air to ventilate the spaces naturally. The center of the bathroom contains a storage closet and the plumbing chase, which is designed with a greywater filtration system to receive excess drainage from the roof and offer irrigation for nearby landscaping. It also includes a proposed "green screen," a prefabricated tension wire attached to the exterior walls. It creates a vertical garden that not only extends the park but also offers a buffer protection for the structure’s walls. Concrete walls contain high fly ash/slag content and are etched with textures of native plants and/or detailed with tiles from local artists.  Wooden screens pull up from the ground and away from the ceiling, allowing light and air to enter the building while offering a natural sense of security.

Client: The City of Emeryville
Civil Engineer: Ware Associates
Landscape Architect: Gates & Associates
Architect: Ware Associates
Contractor: Suarez & Munoz, Inc.



EL DORADO BEACH AT LAKEVIEW COMMONS

South Lake Tahoe, CA

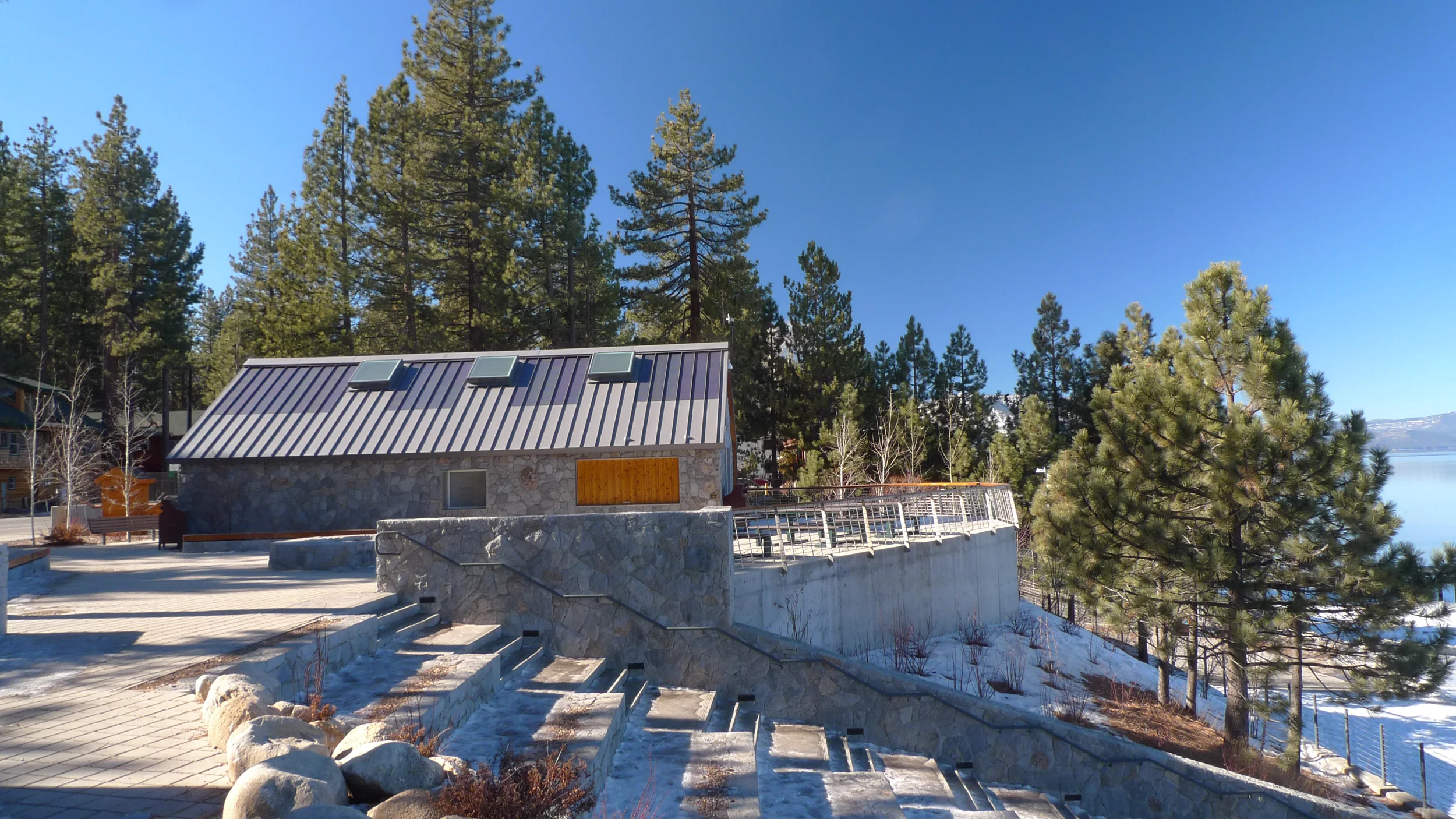

The development of this 56-acre waterfront park in South Lake Tahoe includes outdoor civic space and beautiful lake views. Set against a mountainous backdrop, the waterfront park features a community fire pit, boat storage, concession stand areas, terraced seating, as well as a large-scale elevated walkway engineered by Ware Associates. The future programming for the project also includes a new library, senior center, and an outdoor forest amphitheater. Designed to enhance the natural beauty of the area, the project will bring together the vision of the city, county and community.

Client: City of South Lake Tahoe, CA
Landscape Architect, Prime: RHAA
Structural Design: Ware Associates



Shoreline Ryder Park

San Mateo, CA

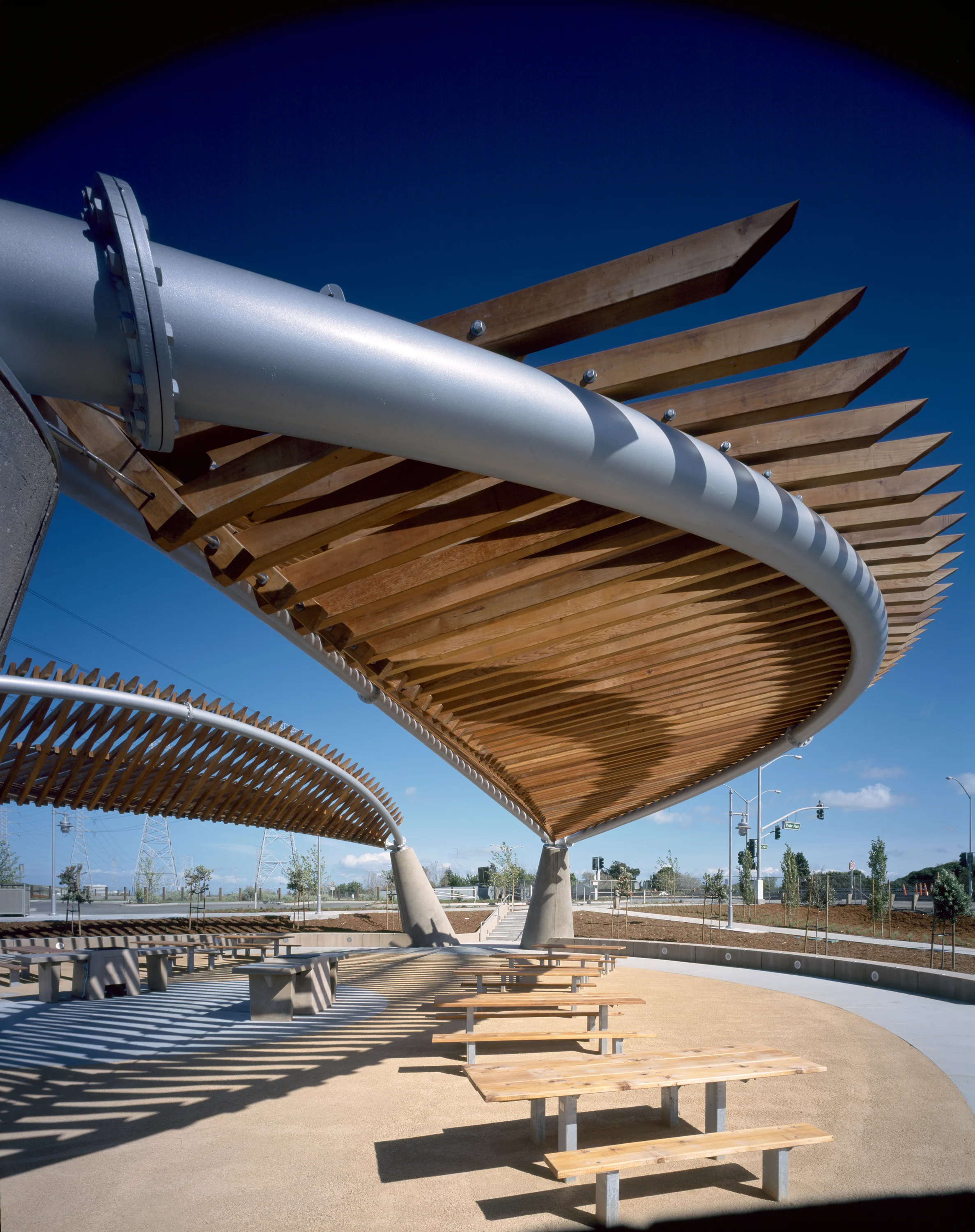

San Mateo designated a 2½-mile stretch of coastline to be transformed into a nature area and park. The site contains tidal and seasonal wetland marshes; a closed and now capped landfill; the San Mateo Creek; recreation areas including ballparks, play and picnic areas; a bicycle trail running the length of the public shoreline; and a windsurfing rigging/access point.  Endres Ware was entrusted with designing several architectural elements including pedestrian and vehicular bridges, public restrooms, picnic/shade shelters, and a maintenance building.  All of these structures are characterized by repeated materials and forms, such as the solid concrete bases, steel pipe structural sections, and cedar wood roof members.

Client: City of San Mateo
Landscape Architect (Prime):
Royston Hanamoto Alley & Abey ASLA, 2M Associates
Architect: Endres Ware
Engineer: Endres Ware



Dutch Slough Community Park, Master Plan

Oakley, CA
The Dutch Slough restoration project is a large-scale tidal marsh restoration effort; the 55-acre community park will be the gateway to the restoration project. Ware Associates provided architecture and structural engineering design,

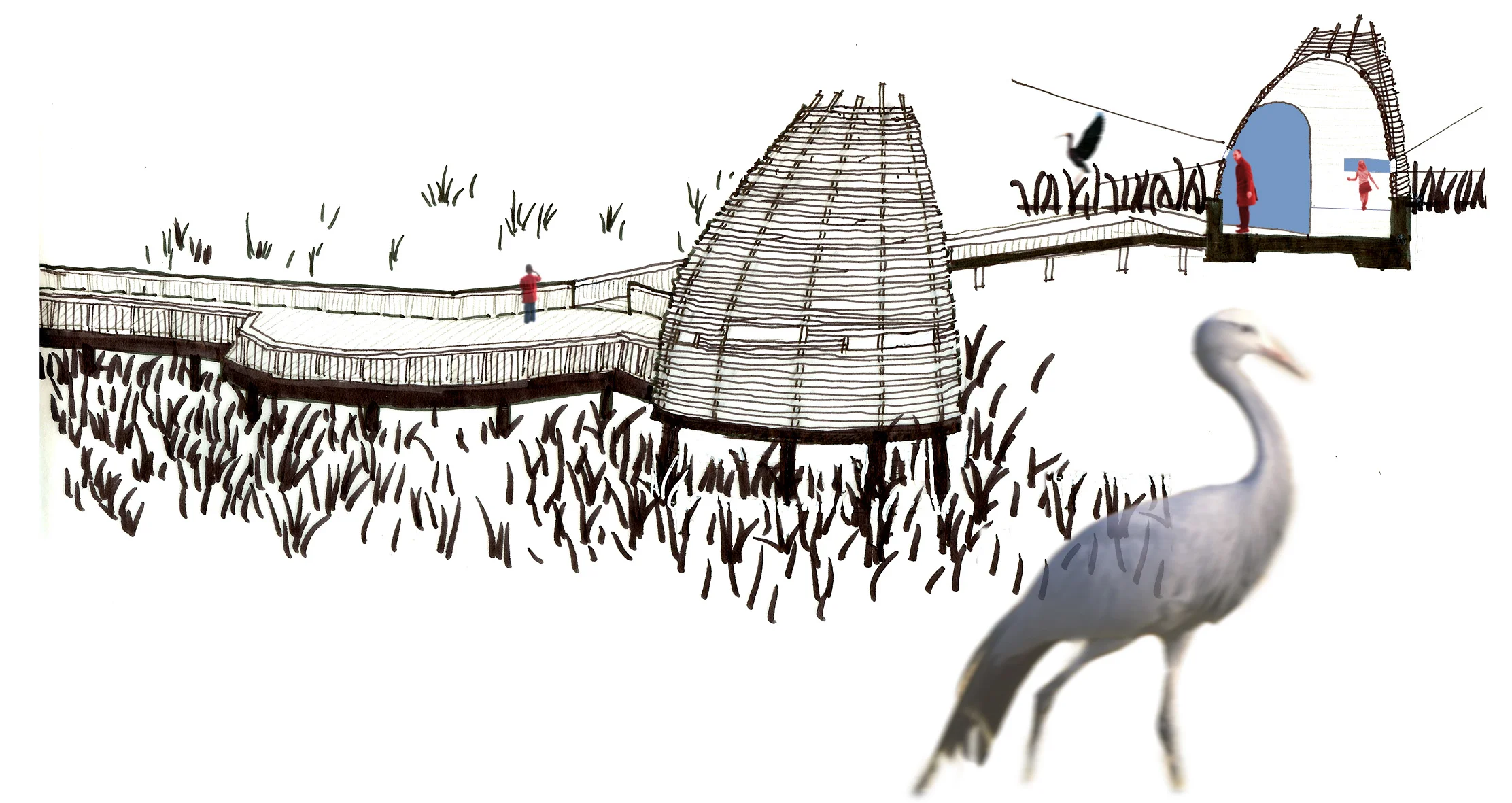

 identified existing historic site features, and provided an adaptive reuse design to turn old dairy farm facilities into a public-oriented educational center. By using the vernacular style of the site, Ware Associates preserved the historical context of the existing structures. We also led the architectural design guidelines for the proposed new buildings on-site. The conceptual plans for new picnic shelters, park restrooms, and wildlife observation blinds reflect the historical character of original Dutch Slough dairy farm buildings. The master park plan and its buildings encourage diverse recreation and educational opportunities at the site.

Client: City of Oakley
Landscape Architect:
2M & Associates with DC&E, and Harison & Associates
Architect: WARE
Engineer: WARE



DUBLIN BART CORRIDOR PROJECT

Dublin, CA
Endres Ware provided the architectural and structural engineering design for the 100-foot long and 25-foot high gateway sculpture as part of the Dublin BART Station Corridor Enhancements Project.
The design is essentially a twisted arch, created by two structural steel pipe chords, connected with pipe cross bracing. All pipe-to-pipe connections are either fillet or partial joint penetration welded. The arch is supported on sub-grade steel bases, anchored to concrete mat foundations. The structure is clad in perforated, stainless steel skin. Endres Ware created a three-dimensional, digital model to provide dimensional control of the project. We worked closely with the fabricator to help define the process for creating the complex geometric steel forms.

Client: City of Dublin
Landscape Architect / Prime: RHAA
Architect and Engineer: Endres Ware



OPEN SPACE FAIRBOOTH

Marin County, CA
This temporary display structure for the Department of Parks and Recreation is designed for flexibility and modularity, using light cables, tension rods, and fabric canopies. The turned wood cedar columns have an adjustable stainless steel cap and base. The cap connection allows aluminum tubes, cables, a column and canopy to stack on a single rod so that the orientation of the fair booth is totally flexible. The assembly brings thirteen elements together in a single connection.

Client: Marin County Department of Parks and Recreation
Architect: Endres Ware
Engineer: Endres Ware



WOODALL RODGERS PARK

Dallas, Texas
Innovation unites the unique architectural highlights of the Woodall Rodgers Park. This new urban space, located in dense area of downtown Dallas, seeks to establish new visual icons for the city and enliven the green space of the urban environment. Endres Ware worked with the Office of James Burnett on the design of the themed children’s area, which includes a whimsical, family friendly public restroom area, and a storytelling deck with treehouse structure. A prominent section of the park's initial design contained a 30 ft tall water feature designed by Endres Ware. Travelling up between two layers of illuminated stacked glass, water flows over the edge of the feature, creating a waterfall down to the play space below.

Client: City of Dallas, TX
Structural Design: Endres Ware
Landscape Architect: Office of James Burnett (Credit: renderings)
